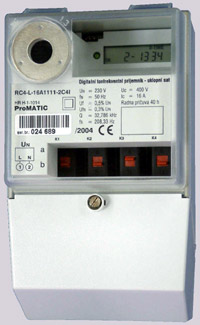

RC4 Digital Ripple control receiver- time switch

RC4 is a high quality single chip ripple control receiver and time switch, both in one device. It can be used in tariff switching applications as well as in load switching applications. RC4 operates in both modes (ripple control and time switch) simultaneously.
If ripple control system is not in function yet, but all parameters are known, RC4 can be installed as time switch device. It operates using DIN43861-301 specified parameters. As soon as ripple control starts functioning, RC4 will recognize signal and begin receiving telegrams.
As ripple control receiver, RC4 can operate with any type of conventional telegrams, and DIN43861-301 telegrams.
RC4 is tested and certified according to standards: EN62052-21, EN62054-11, EN62054-21 (IEC61037, IEC61038), DIN43861-2, DIN43861-301. CE Attestation of Conformity for "CE" marking is made, too.
According to implemented functions, RC4 can be made in a few subtypes.

RC4 V1.X DIN43861-301 Tehnical manual REV-J1 (424Kb)
RC4 Short Description REV-B (192Kb)
RC4 Certificates (3733Kb)
RC4 Fixed Ripple Control System Parameters REV-F (101Kb)
